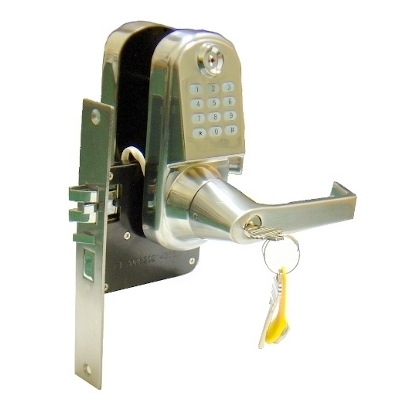

Mortise Type latch option, shown
here on an E5 lock.
|
E5 Mortise latchbolts can be fitted to any of the E5
model locks in the field, or ordered already equipped.
The Eternity mortise latchbolt assembly
must be ordered either left or right handed,
depending on the door application. If in doubt as to
which on you need, contact your dealer or Uaccess LLC
technical support for advise.
E4 Mortise latchbolt assemblies can be fitted to
E4 locks at the factory, but can not
be easily retrofitted in the field. Any attempt to field
modify an E4 lock for mortise latchbolt use will void the
manufacturer warranty. If retrofit of an E4 lock is
required, the lock should be returned to Uaccess LLC for
modification. The Eternity mortise latchbolt assembly
must be ordered either left or
right handed, depending on the door application. If in
doubt as to which on you need, contact your dealer or
Uaccess LLC technical support for advise.
Finish: Stainless Steel
Door Preparation:
Standard ANSI A115 Series Prep
Strike
Plate: ANSI Standard 115.3. 1-1/8 x 2-3/4 inch T strike
with 1-1/4 lip-to-center dimension
Mortise: 2 3/8 inch backset
with heavy duty 3/4 inch throw deadbolt
Materials: Zinc Alloy
Accessibility
Standard: Meets ADA standards (Americans with disabilities
act) |
